Final Test Board
| |
|
|
 |
|

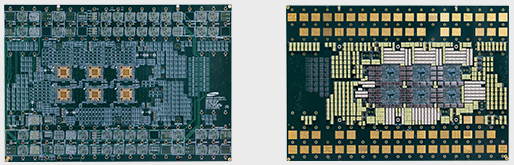

 T2000 EPP, T2P (Advantest)
| Max Layer |
~68 Layer |
| Thickness |
6.35mm |
| Material |
FR-4, NELCO, I-Tera, Tachyon 100G, Megtron6, Megtorn7 |
| Size |
680*520 |
| Min Pitch |
0.3mm Pitch |
| Option |
HPL, BVH, Back Drill, Build Up |
| Impedance Control |
50, 90, 100ohm ±10% (7%, 5%) |
| Max Dut |
~16DUT |
|
| |
|
|
| |
|
|
 |
|
T2000, T2K (Advantest)
| Max Layer |
~54 Layer |
| Thickness |
4.8mm |
| Material |
FR-4, NELCO, I-Tera, Tachyon 100G, Megtron6, Megtorn7 |
| Size |
550*480 |
| Min Pitch |
0.3mm Pitch |
| Option |
HPL, BVH, Back Drill, Build Up |
| Impedance Control |
50, 90, 100ohm ±10% (7%, 5%) |
| Max Dut |
~16DUT |
|
| |
|
|
| |
|
|
 |
|
UltraFLEX-XC [UltraPin1600] (XD,XC,SC,HD) (Teradyne)
| Max Layer |
~68 Layer |
| Thickness |
6.35mm |
| Material |
FR-4, NELCO, I-Tera, Tachyon 100G, Megtron6, Megtorn7 |
| Size |
580*406 |
| Min Pitch |
0.3mm Pitch |
| Option |
HPL, BVH, Back Drill, Build Up |
| Impedance Control |
50, 90, 100ohm ±10% (7%, 5%) |
| Max Dut |
~16DUT |
|
| |
|
|
| |
|
|
 |
|
UltraFLEX-XC [UltraPin800] (XD,XC,SC,HD)(Teradyne)
| Max Layer |
~54 Layer |
| Thickness |
4.8mm |
| Material |
FR-4, NELCO, I-Tera, Tachyon 100G, Megtron6, Megtorn7 |
| Size |
580*406 |
| Min Pitch |
0.3mm Pitch |
| Option |
HPL, BVH, Back Drill, Build Up |
| Impedance Control |
50, 90, 100ohm ±10% (7%, 5%) |
| Max Dut |
~16DUT |
|
| |
|
|
| |
|
|
 |
|
FLEX & microFLEX (Teradyne)
| Max Layer |
~54 Layer |
| Thickness |
3.2mm, 4mmm, 4.8mm |
| Material |
FR-4, NELCO, I-Tera, Tachyon 100G, Megtron6, Megtorn7 |
| Size |
406*406 |
| Min Pitch |
0.3mm Pitch |
| Option |
HPL, BVH, Back Drill, Build Up |
| Impedance Control |
50, 90, 100ohm ±10% (7%, 5%) |
| Max Dut |
~16DUT |
|
| |
|
|
| |
|
|
 |
|
Catalyst (Teradyne)
| Max Layer |
~36 Layer |
| Thickness |
3.2mm |
| Material |
FR-4, Nelco, Isora, Panasonic |
| Size |
385*342 |
| Min Pitch |
0.35mm Pitch |
| Option |
HPL, BVH, Back Drill, Build Up |
| Impedance Control |
50, 90, 100ohm ±10% (7%, 5%) |
| Max Dut |
~8DUT |
|
| |
|
|
| |
|
|
 |
|
HP9300, V93K (Advantest)
| Max Layer |
~36 Layer |
| Thickness |
3.2mm |
| Material |
FR-4, Nelco, Isora, Panasonic |
| Size |
293*430 |
| Min Pitch |
0.35mm Pitch |
| Option |
HPL, BVH, Back Drill, Build Up |
| Impedance Control |
50, 90, 100ohm ±10% (7%, 5%) |
| Max Dut |
~8DUT |
|
| |
|
|
| |
|
|
 |
|
J750 DIB (Teradyne)
| Max Layer |
~36 Layer |
| Thickness |
3.2mm |
| Material |
FR-4, Nelco, Isora, Panasonic |
| Size |
337*340 |
| Min Pitch |
0.35mm Pitch |
| Option |
HPL, BVH, Back Drill, Build Up |
| Impedance Control |
50, 90, 100ohm ±10% (7%, 5%) |
| Max Dut |
~8DUT |
|
| |
|
|
