PCB Manufacture Technology




PCB Manufacture Performance
Engineering


Attributes Layer Count 80L
Max. Board Thickness 7.4T
Max. Panel Size 610 * 720mm
Small Via Hole
/Aspect Ratio		 Standard 26
Advance / Prototype 32 / 41
Trace & Space External (1.5oz) 2.5 / 3.0mil
Internal (0.5oz) 2.0 / 2.5mil
Pitch Min BGA Pitch 0.25mm
Build-Up Via Structure Sequentia Lamination 40-N-4 LVH+IVH
Flatness Warpage 0.25mm
D2M Drill to Copper 0.3mil









Handling PCB raw Materials

Maker High Multi Layer Mass Production Under Qual or Plan Under Review
Doosan DS7***S(N)
DS7***D**(X)		 DS7***S(F)
DS7***H		 - DS7***9D,
DS7***9D(Z)
DS7***2D
iSola - 3***R, FR**6
FR**8 / HR, IS***i		 - IS4**, IS6**
Panasonic Me*****4
Me*****6		 R1***V
R1***T		 Me*****2
Me*****7		 R2***
ITEQ - IT18* / A, IT15* IT1**DA IT18*I, IT17**R, IT2***K
IT15*D, IT1**DASE/_L
tuc - TU72*, TU76*
TU8***F, TU8**LF/SLK		 - TU***K Sp
MGC - - H*-6**G
F*-2		 E*-1**T, E*2-**T
F*-7**
P N4***-*3/SI
N4***-*2/SI		 N4***-6
N7***-*2HT		 - N4***-20
ROGERS - RO4***B, RO3***
RO4***C		 - RO***/6









LDI(Laser Direct Image)


Minimum Pattern Width 30㎛
Resolution 2.5㎛
Light Source UV Semiconductor Laser
Maximum Product Size 520*620mm
Maximum Exposed Area 515*615mm
Maximum Product Thickness 3.0mm (Semiautomatic 5.0mm)
Characteristic Pattern formation precison is excellent

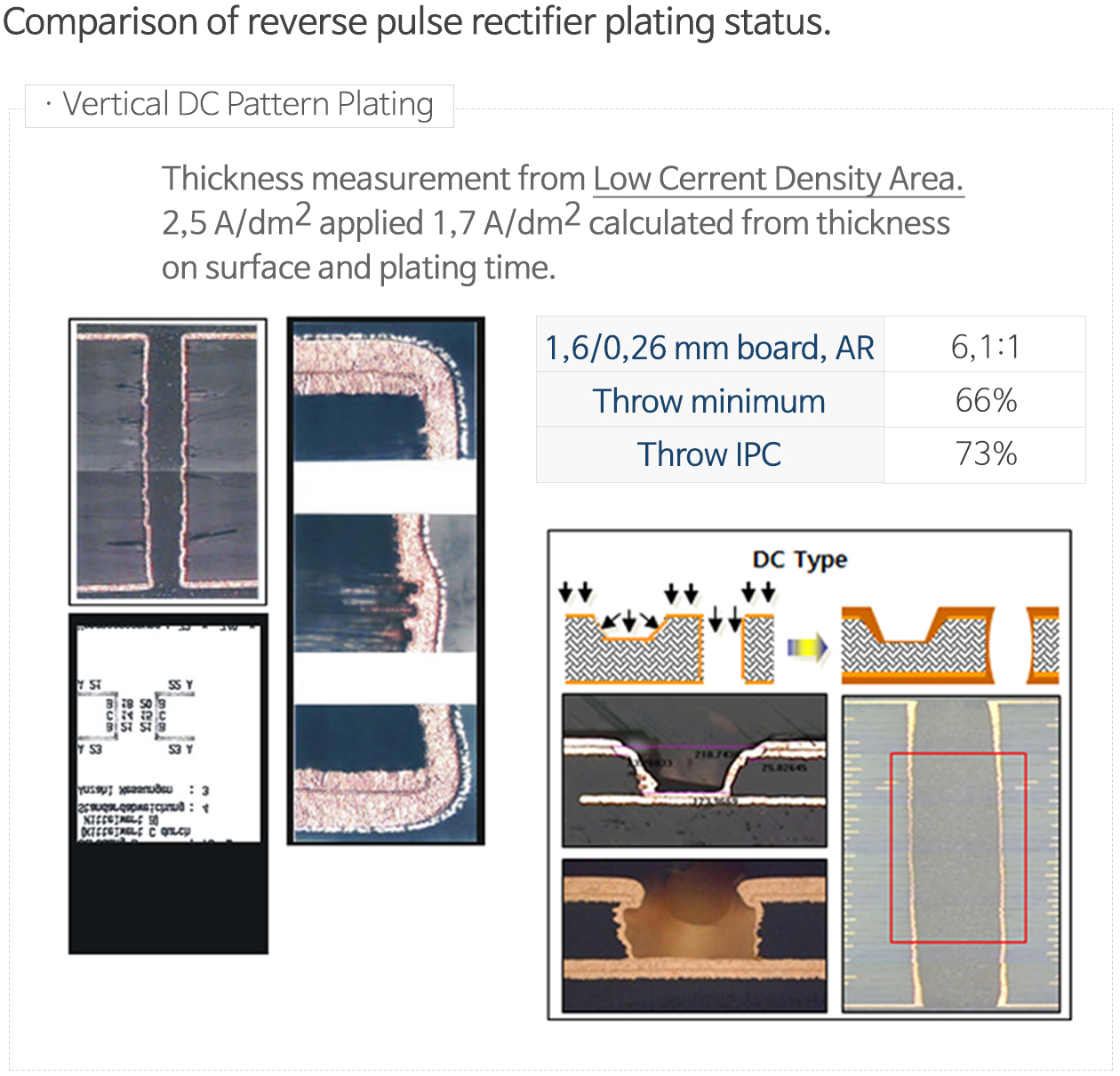

Reverse Pulse Rectifier Plating
